Yin Xing Poultry Equipment Customized Multi-Style Multi-broiler
Chicken Cage
Professional Breeding Equipment Layer Chicken Cage
The advantage of belt type manure cleaning machine of layer chicken
cage
The chicken manure and the chickens are completely isolated, the
automatic manure cleaning system can clean the chicken feces in
time, making the chicken house environment more hygienic and clean,
and reducing the incidence rate and mortality of chickens.
Detailed information of Chicken layer chicken cage:
Material: Q235 national standard bridge steel cages, white PVC
trough, Ball-type automatic water equipment, white PVC pipe, 3MM
U-type galvanized Steel shelves, closed-end regulator.
The nipple drinker: Automatic water valve device: 360-degree
rotating design, traffic, water Enough. Watertight. Chicken is easy
to meet drinking water needs. Imports of stainless steel Sphere.
Useful life of 15-20 years. 3 years of damage or leakage, free
replacement. (Except Artificial damage)
Trough: The new white PVC trough, compression heat and deformation,
not broken.
Service life of 15 -20 years. Ability to withstand compression: Any
adult can walk on it.
The pipe: White PVC pipe: New PVC material, deformation, high
temperature, difficult To damage. Impurities in the water will not
produce a chemical reaction, thus ensuring The chickens can drink
clean and healthy water. Useful life of 15 years.
The pressure reducer: Closed regulator: Fully enclosed design,
voltage regulator and Filter with one, you can adjust the length of
the sheds any water pressure. Every chicken Cage line need three
pressure reducers. If you have two lines, you need six Leg support:
3MM U-type galvanized steel shelf, national standard 3MM thick
steel Plate, U shape design. Can withstand pressure of 350 kg. With
double-dip galvanizing, The age of 15 -20 years.

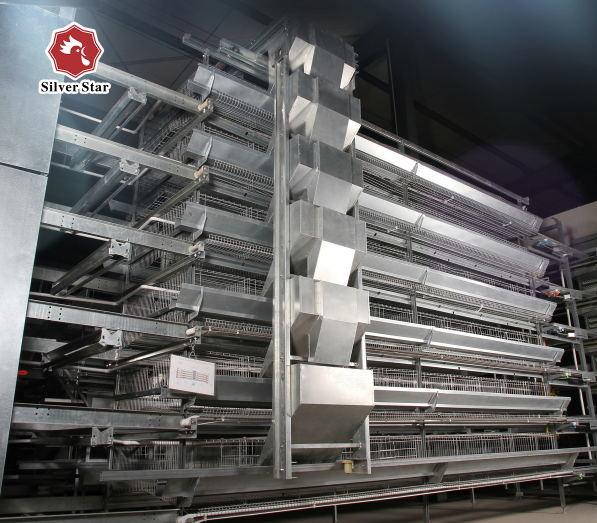

Automatic Feeding Machine Structure
1. Layer Poultry Farming Cage Feed Hopper: Each layer of cage with two hoppers, thickness is 1.2mm, material
is hot-dip galvanized steel
2. Traction Device: Power of motor:0.75kw,tow rope: pp rope with
14mm, speed: 8.67m/minute.
3. Track of Trolley: Hot dip galvanized steel with 48mm*2.75mm.
4. Head and End Frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5. Operation: Each line of feeding machine can be operated
seperately.
6. Auger Transverse: The feeding trolley carts is conneted with the
silo by the transverse feeding auger.
7. Application: Suit for both A and H type battery cage poultry
layers, broiler chicken poultry cage, battery brooder cage etc.
Layer Poultry Farming Cage Size
| H Type Layer Poultry Farming Cage |
| Model | Length(mm) | Width(mm) | Heigh(mm) | Cells Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 1200 | 2140 | 4 | 144 |
| 4 Tiers | 1800 | 1200 | 2790 | 4 | 192 |
| 5 Tiers | 1800 | 1200 | 3440 | 4 | 240 |
| 6 Tiers | 1800 | 1200 | 4090 | 4 | 288 |
| 8 Tiers | 1800 | 1200 | 5390 | 4 | 384 |
| 3 Tiers | 650 | 1250 | 2220 | 1 | 54 |
| 4 Tiers | 650 | 1250 | 2870 | 1 | 72 |
| 5 Tiers | 650 | 1250 | 3520 | 1 | 90 |
| 6 Tiers | 650 | 1250 | 4170 | 1 | 108 |
| 8 Tiers | 650 | 1250 | 5470 | 1 | 144 |
Why To Choose Layer Poultry Farming Cage Raising Chicken ?
1. The environment of poultry chicken house is controllable, which
is conducive to the physiological and production needs of chicken.
2. Automatic drinking, feeding, manure cleaning, eggs collecting,
saving labors, reducing breeding cost, multi-layer battery cage
saves more space than floor raising, high land utilization rate,
saving chicken house construction and land cost.
3. Due to the good isolation between the close chicken house and
the outside , the chance of cross contamination of chickens will be
greatly reduced, which is conducive to the prevention and control
of epidemic diseases, and save the cost of epidemic prevention.
Battery Broiler Chicken Cage Dimension
| Modle | Unit Size | Rearing Cage Size | Rearing Area | Birds Capacity/Unit |
| 1000X1000: 3-Tier | 1000X1000X2200 | 1000X1000X440 | 1㎡ | 60 |
| 890X1250: 3-Tier | 890X1250X2000 | 890X1250X440 | 1.113m3 | 66 |
| 1500X1000: 3-Tier | 1500X1000X2200 | 1500X1000X440 | 1.5㎡ | 90 |
| 1480X1750: 3-Tier | 1480X1750X2800 | 1480X1750X440 | 2.59㎡ | 150 |
| 1000X1000: 4-Tier | 1000X1000X2850 | 1000X1000X440 | 1㎡ | 80 |
| 890X1250: 4-Tier | 890X1250X2650 | 890X1250X440 | 1.113m3 | 88 |
| 1500X1000: 4-Tier | 1500X1000X2850 | 1500X1000X440 | 1.5㎡ | 120 |
| 1480X1750: 4-Tier | 1480X1750X3600 | 1480X1750X440 | 2.59㎡ | 200
|
