3 Phase Farm Layer Chicken Cage Poultry H Type Layer Cage

Ask Lasest Price
Brand Name :	Silver Star
Model Number :	H type cage
Certification :	ISO 9001
Price :	100 USD
Payment Terms :	T/T
Supply Ability :	100 set 30 days
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

3 Phase Farm Layer Chicken Cage Poultry H Type Layer Cage

Hot Galvanized Poultry Farm House New Design Layer Chicken Machine Animal Cage

Battery Hen Farm Layer Chicken Coop Modern Hens Cage For Sale

Hot Galvanized H Type Layer Chicken Coop Battery Cage System Laying Hens

Our Service

1. Professional poultry house design. You just inform of us the raising quantity for one house, our design team will provide you one suitable plan and design poultry house for you. If you already built the house, we can offer you according to your current house size.
2. After-sale service and farming guidance.
3. Offering one-site service, including project design, quality control, installation, after-sale service and farming guidance.
4. Provide installation instructions, drawings and videos.

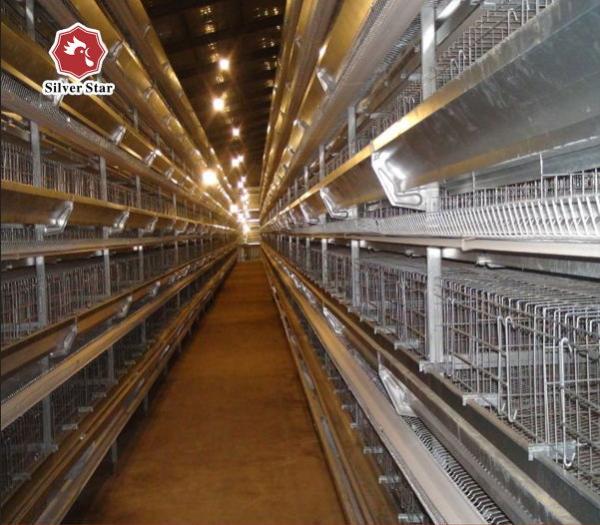

H Type Poultry Layer Cages Information:

1. Silver Star h type poultry layer cage structure is designed as a single cage chicken system, the size of each cage is 650*625*500 mm, short distance between two cage frames make the cages not easy to be deformed, also available to adjust the rearing density according to customer's request;

2. The layer space is 650mm, and the increase in height is in favour of ventilation and cooling. The maximum layers/floors of equipment can be up to 10 tiers, to provide strong support for future large-scaled breeding;

3. All cage meshes are Q235 bridge steel wire, the surface adopt hot-dip galvanizing treatment, strong anti-rust;
4. The material of cage frame is 275g hot galvanized steel sheet, more durable and not easy to deformation.

Layer Cage Parameter:

Layer Cage Body	1. Size: 65x62.5x50cm, 183x60x41mm; 2. Material: Hot dipped galvanized; 3. Feed trough:Zn-Al material. Thickness: 1.0mm. 4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers; 5. Capacity:54-384 birds/set
Automatic Hopper Feeding Machine Equipment	1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel 2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute. 3. Track of Trolley:Hot-dip galvanized steel with 48mm2.75mm. 4. Head and end frame:Hot-dip galvanized steel with 40mm60mm*3mm. 5. Silos
Automatic Drinking System	1. Nipple Drinkers 2. Water Pipes 3. Water Pressure regulator 4. Filter 5. Medical pump
Automatic Egg Collecting Machine	1. Hot-dip galvanized 1.5mm side plate,speed 4m/min. 2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device. 3. Egg belt:100mm width 4. Crosswise egg conveyor
Automatic Poultry Manure Removal Machine	1. Belt type manure cleaning machine:Hot-dip galvanized 2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m. 3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness. 4. Transverse manure conveying
Environmental Controller	Fans, cooling pad, air inlets, intelligent controller

H Type Layer Chicken Coop Cage Size:

Tiers/Foors	Each Door Size(mm)	Unit Cage Size(mm)	Birds Qty
3	650x600x500	650x2100x2700	54
4	650x600x500	650x2100x3200	72
5	650x600x500	650x2100x3900	90
6	650x600x500	650x2100x4600	108
8	650x600x500	650x2100x5300	144
3	430x600x410	1800x2100x2700	144
4	430x600x410	1800x2100x3200	192
5	430x600x410	1800x2100x3900	240
6	430x600x410	1800x2100x4600	288
8	430x600x410	1800x2100x5300	384
Equipment	H Type Layer Chicken Coop Battery Cage System Hens, Frame, Feed Trough, Auto Drinking Lines,Automatic Feeding System, Automatic Egg Collection System, Automatic Manure Removal System, Automatic Ventilation System, Environmental Controller
