HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers

Henan Silver Star Poultry Equipment Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers from wholesalers

    Buy cheap HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers from wholesalers
    • Buy cheap HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers from wholesalers
    • Buy cheap HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers from wholesalers

    HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers

    Ask Lasest Price
    Brand Name : Silver Star
    Model Number : YXDH5-240
    Certification : ISO9001, SGS, SonCap
    Price : 135-235USD/SET
    Payment Terms : T/T, Western Union, D/A, D/P, L/C
    Supply Ability : 50000sets/month
    Delivery Time : 15-30 working days after advanced payment
    • Product Details
    • Company Profile

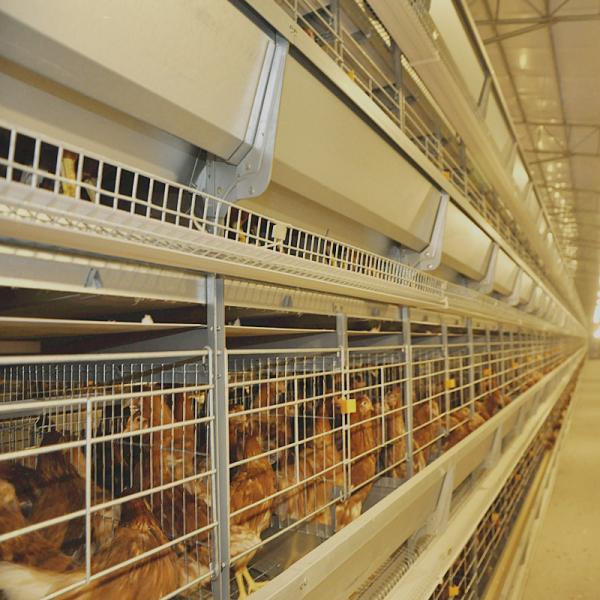

    HDG H Type Battery Chicken Cage For Laying Hens 3-10Tiers

    Poultry Breeding Equipment H Type Egg Chicken Layer Battery Cages Laying Hens


    Other nameH Type Chicken Battery Cages, Poultry Breeding Equipment
    TypeEgg chicken layer cage of H frame
    MaterialQ235 steel Wire mesh
    Size1800*600*430/650*625*500mm
    Tier5 tiers
    Capacity/Set240 birds
    Usagebattery cages for laying hens, layer farming equipment
    Surface treatmentHot dipped galvanized after welding process
    Payment terms30% deposit in advance, 70% balance should be paid before shipment.
    Delivery termsFOB, CIF, EX-Works
    Delivery Date30 days after deposit
    Shipment methodsBy Sea, loading containers by FCL, LCL .
    Service Life15~20 years

    Features of Battery Cages Laying Hens:


    1. High land utilization;
    2. Automatic control system;
    3. Comfortable and safe feeding environment;
    4. Easy maintenance and operation;
    5. High rearing efficiency;
    6. Good daylight and ventilation


    Advantages Of Battery Cages Laying Hens:


    1. The environment of chicken house is controllable, which is conducive to the physiological and production needs of chicken.

    2. Automatic drinking, feeding, manure cleaning, eggs collecting, saving manpower, reducing raising cost, multi-layer cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost.

    3. Due to the good isolation between the close chicken house and the outside , the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention.


    Specification of Battery Cage Laying Hens:


    Cage Body

    1. Size: 650x625x500mm, 430x500x410mm;

    2. Material: Hot dipped galvanized;

    3. Feed trough:Zn-Al material. Thickness: 1.0mm.

    4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

    5. Capacity:54-384 birds/set

    Automatic Hopper Feeding Machine Equipment

    1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

    2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

    3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

    4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

    • Silos
    Automatic Drinking System

    1. Nipple Drinkers

    2. Water Pipes

    3. Water Pressure regulator

    4. Filter

    5. Medical pump


    Automatic Egg Collecting Machine

    1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

    2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

    3. Egg belt:100mm width

    4. Crosswise egg conveyor

    Automatic Poultry Manure Removal Machine

    1. Belt type manure cleaning machine:Hot-dip galvanized

    2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m.

    3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness.

    4. Transverse manure conveying


    Environmental ControllerFans, cooling pad, air inlets, intelligent controller

    Our Company


    Henan Silver Star Poultry Equipment Co., Ltd. has been committed to the research and development, design, production, sales and installation of poultry breeding equipment since its establishment, introduced advanced international intelligent production technology and manufacturing technology, and developed layer raising equipment, broiler raising equipment to be suitable for the global market. Equipment for brooding, egg packaging, chicken manure treatment and comprehensive disinfection, etc., provides the most perfect product equipment for domestic and abroad poultry farming customers. At present, it mainly produces intelligent layer farming equipment, brooder equipment, breeder equipment, broiler equipment, intelligent welfare breeding equipment, egg sorting and packaging system, and environmental control system , Intelligent livestock and poultry manure processing system and integrated disinfection system.
