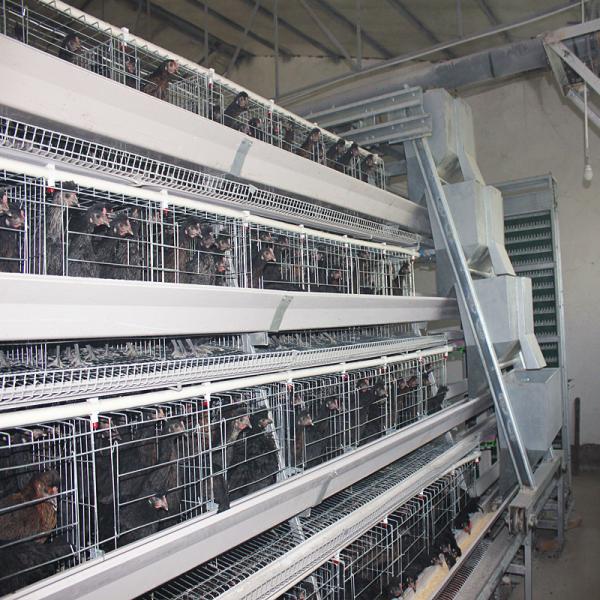

160 Birds Chicken Coops Layer Battery Cage For Poultry Laying Hens
Farming
Chicken Layer Battery Cage Advantages
1. Full sets of chicken cage equipment is made of hot-dip
galvanized processing, which is corrosion-resistant and ensures
15-20 years lifespan.
2. Intensive management and automatic control. Achive automatic
feeding, drinking, manure removal, egg collection and environmental
control,which will help improve working efficiency and save labor
costs.
3. With sufficient feed, good water level and healthy uniformity
limit the minimum amount of exercise, energy consumption of
chickens and save feed.
4. Chicken manure is completely separated from the chicken, and the
manure can fall directly to the ground. The dust in the chicken
house is greatly reduced, less chance of disease infection from the
manure, and greatly reduce the mortality rate of chicken
5. High-density breeding, saving land and investment. Chicken cage
system is easier to observe the birds, easy to gather or weak in
selection.
6. Suitable for closed and open chicken houses. Automatically
control ventilation and temperature to meet the needs of chickens.
Some places can also be used for open houses, A type structure has
better ventilation.
Chicken Layer Battery Cage Description
(1) Both A and H type chicken layer battery cage for laying hens
(2) A Type: 3, 4 Tiers; H Type 3, 4, 5, 6, 8, 9, 10Tiers
(3) Q235 hot galvanizing, strong anti-rust
(4) Fully automatic, energy cost saved
(5) Full Battery Cage System Including Hens Cage Body, Chicken
Layer Cage Frame, Feeders, automatic drinking system, poultry
feeding system, automatic manure removal stystem, automatic egg
collection system, Automatic Ventilation System etc.
Battery Chicken Cage Specification
| A Type Chicken Layer Battery Cage |
| Cage size | Door No. /cage | Chicken No. /door | No. of layer | Capacity of one set of cage | Area per bird (cm2/bird) | Cell Size(mm) | Unit Cage Size(mm) |
| 1950*380*380 | 5 | 3 | 3 | 90 | 494 | 390x380x380 | 1950x2300x1500 |
| 1950*380*380 | 5 | 3 | 4 | 120 | 494 | 390x380x380 | 1950x2300x1900 |
| 1950*410*410 | 5 | 4 | 3 | 90 | 533 | 390x410x410 | 1950x2300x1600 |
| 1950*410*410 | 5 | 4 | 4 | 120 | 533 | 390x410x410 | 1950x2300x2000 |
| 1950*410*410 | 4 | 4 | 3 | 96 | 499 | 487x410x410 | 1950x2300x1600 |
| 1950*410*410 | 4 | 4 | 4 | 128 | 499 | 487x410x410 | 1950x2300x2000 |
| 1950*450*410 | 5 | 4 | 3 | 120 | 438 | 390x450x410 | 1950x2360x1600 |
| 1950*450*410 | 5 | 4 | 4 | 160 | 438 | 390x450x410 | 1950x2360x2000 |
| 1720x410x410 | 4 | 4 | 3 | 96 | 440 | 430x410x410 | 1720x2300x1600 |
| 1720x410x410 | 4 | 4 | 4 | 128 | 440 | 430x410x410 | 1720x2300x2000 |
| 2150x410x410 | 5 | 4 | 3 | 120 | 440 | 430x410x410 | 2150x2300x1600 |
| 2150x410x410 | 5 | 4 | 4 | 160 | 440 | 430x410x410 | 2150x2300x2000 |
| Full equipment | Automatic feeding machine, automatic drinking system, automatic egg
collection and automatic manure cleaning system |
| H Type Chicken Layer Battery Cage |
| Cage size | Door No. /cage | Chicken No. /door | No. of layer | Capacity of one set of cage | Area per bird (cm2/bird) | Cell Size(mm) | Unit Cage Size(mm) |
| 1800*600*410 | 4 | 6 | 3 | 144 | 450 | 450x600x410 | 1830x1200x2140 |
| 1800*600*410 | 4 | 6 | 4 | 192 | 450 | 450x600x410 | 1830x1200x2790 |
| 1800*600*410 | 4 | 6 | 5 | 240 | 450 | 450x600x410 | 1830x1200x3440 |
| 1800*600*410 | 4 | 6 | 6 | 288 | 450 | 450x600x410 | 1830x1200x4090 |
| 1800*600*410 | 4 | 6 | 8 | 384 | 450 | 450x600x410 | 1830x1200x5390 |
| 650*625*500 | 1 | 9 | 3 | 54 | 450 | 650x625x500 | 650x1250x2220 |
| 650*625*500 | 1 | 9 | 4 | 72 | 450 | 650x625x500 | 650x1250x2870 |
| 650*625*500 | 1 | 9 | 5 | 90 | 450 | 650x625x500 | 650x1250x3520 |
| 650*625*500 | 1 | 9 | 6 | 108 | 450 | 650x625x500 | 650x1250x4170 |
| 650*625*500 | 1 | 9 | 8 | 144 | 450 | 650x625x500 | 650x1250x5470 |
| Full equipment | Automatic feeding machine, automatic drinking system, automatic egg
collection and automatic manure cleaning system, ventilation system |
FAQ
Q: How many chicken A type cage hold? How many layers?
A: 120 birds for 3-tier, 160 birds for 4-tier.
Q: Which cage size or capacity is suitable for my chicken farm?
A: We will give you suggestion according to your house size, or
chicken quantity .
Q: What is the MOQ of A type chicken cage?
A: Usually we suggest 10000 layer birds chicken cage, which can be
loaded in one 20ft container.
Q: How many sets of A type layer cage can be fit in one container?
A: If 3-tier, 84sets/20ft container; If 4-tier, 64sets/20ft
container.
Q: How many years it can last for?
A: 15-25years
Q: How to install the cage?
1. We provide installation video and drawings for your
installation;
2. Also can send our engineer to guide installation.
Q: How is your payment term?
A: Normally, 30% TT in advance and the balance 70% before loading.
Other payment term we can also discuss.
Q: How is your delivery time?
A: In 30 days after payment.
