    Paper Poultry Environmental Control System 15cm / 18cm Poultry House Cooling Pad

    Ask Lasest Price
    Brand Name : Silver Star
    Model Number : YX7060, YX7090
    Certification : ISO9001, SONCAP
    Price : 12-25USD/ M2
    Payment Terms : T/T, Western Union, D/A, D/P, L/C
    Supply Ability : 200000sets/ month
    Delivery Time : 7-10 working days after advanced payment
    • Product Details
    • Company Profile

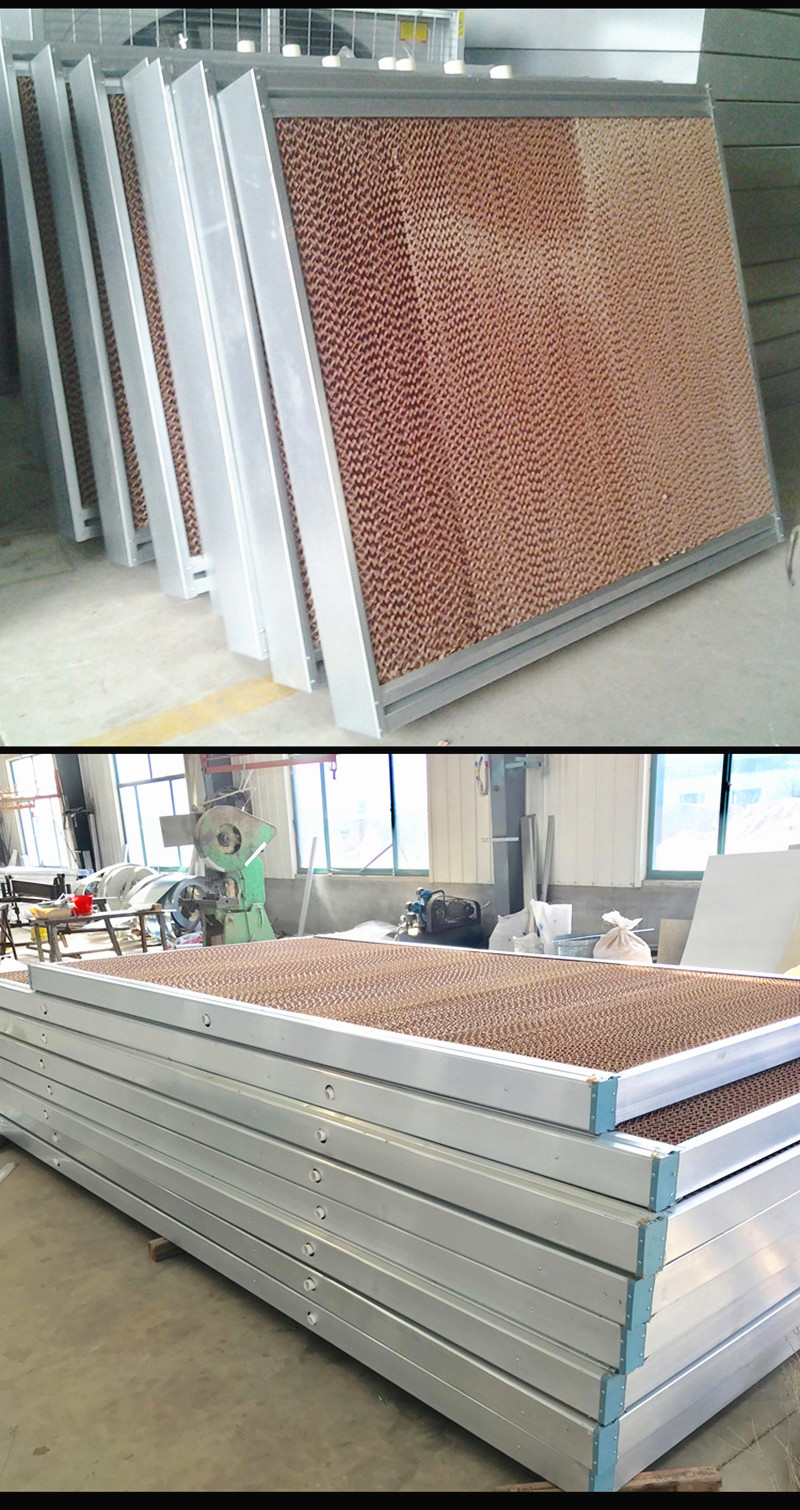

    Paper Poultry Environmental Control System 15cm / 18cm Poultry House Cooling Pad

    Cooling Pad Paper Poultry Environmental Control System, 15cm Thickness


    Cooling Pad Paper Poultry Environmental Control System Working Principle


    Silver Star cooling pad is made of a new generation of polymer materials and space cross-linking technology. It has the advantages of high water absorption, high water resistance, fast diffusion, anti-mildew, strong cooling efficiency, and long service life. Suitable for adjusting indoor humidity.

    Cooling pad is a special paper honeycomb structure material. Its working principle is the natural physical phenomenon of "water evaporates and absorbs heat", that is, water flows from top to bottom under the action of gravity, forming water on the fiber surface of the water curtain. Membrane, when the flowing air passes through the water curtain, the water in the film will evaporate and absorb the heat in the air to take away a large amount of latent heat, so that the humidity of the air passing through the water curtain is reduced to achieve the purpose of cooling down.


    Poultry Environmental Control System Cooling Pad Paper Techinical Parameter


    Dimension (mm)7090Model7060 Model
    Height1500,1800,2000, 25001500,1800,2000, 2500
    Width900,600,300900,600
    Thickness100,150,200,300100,150,200,300
    Height of flute75

    5090Model also can be provided according to order.


    Poultry Environmental Control System Cooling Pad Paper Features


    1. The evaporation is larger than the surface, and the excellent permeability can ensure that the water evenly penetrates the entire wet curtain wall, and the cooling efficiency is over 85%.

    2. It does not contain surfactants, naturally absorbs water, has a fast spreading speed, and has a long-lasting effect. A drop of water can be diffused in 4~5 seconds.

    3. It has high water absorption, natural water absorption is 60~70mm/5min or 200mm/1.5hour.

    4. The corrugated paper has been specially treated, with high structural strength, no deformation, and long-lasting durability.

    5. The specific three-dimensional space structure provides the largest evaporation surface area for the heat exchange between water and air.

    6. Silver Star wet curtain also has ventilation and corrosion resistance, has an excellent filtering effect on dust in the air, is a non-toxic, odorless, clean, humidified, and oxygen-cooled environmentally friendly material, so it is also used for air purification and filtration Medium.

    7. Silver Star cooling pad is easy to install, non-toxic and harmless to the human body, green, safe, energy-saving, environmentally friendly and economical.

    8. Three corrugated specifications 50/90, 60/90, 70/90 are optional. The size can be customized according to customer requirements.

    9. Outer frame material: aluminum alloy, galvanized sheet, stainless steel, plastic steel

    10. The corrugated paper is specially treated, with high structural strength, corrosion resistance and long service life.

    11. It has excellent water permeability and water absorption, which can evenly penetrate the entire wet curtain wall.

    12. The specific three-dimensional space structure provides an evaporation surface area for the heat exchange between water and air.
