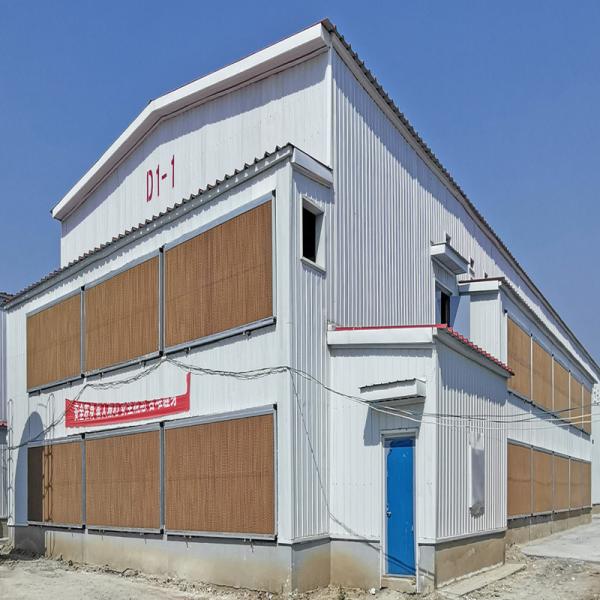

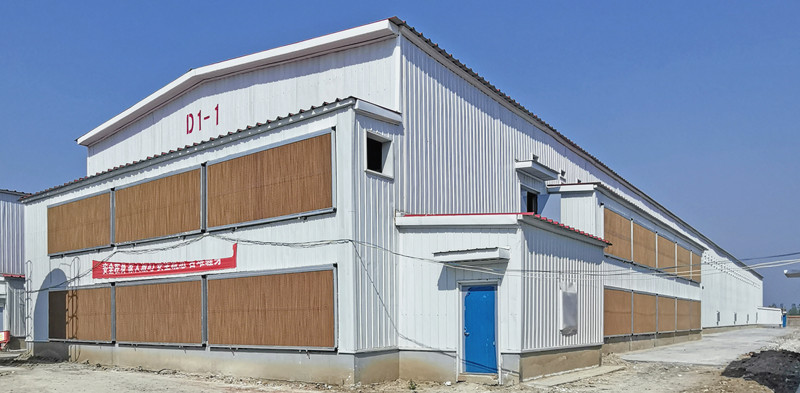

7090 Honeycomb Filter Air Cooling Pad Water Cooler For Poultry Farm And Greenhouse

Air Cooling Pad Water Cooler Working Principle

The cooling process of the Silver Star cooling pad or wet curtain cooling system is completed in its core-the paper cushion. There is a thin water film on the surface of the corrugated fiber paper. When the outdoor dry hot air is sucked through the paper pad by the fan, the water on the water film evaporates and absorbs the heat in the air and then evaporates into water vapor, which is processed Then the cool and humid air entered the room. This natural process is like the wind blowing across the water.

The air dry bulb temperature and wet bulb temperature in the external environment are different at each moment. The dry bulb temperature is high and the wet bulb temperature is low. The hotter the weather, the greater the difference between the dry bulb and the wet bulb temperature.

Air Cooling Pad Water Cooler Techinical Paramete

5090Model also can be provided according to order.

Honeycomb Filter Air Cooling Pad Water Cooler Features

1. The evaporation is larger than the surface, and the excellent permeability can ensure that the water evenly penetrates the entire wet curtain wall, and the cooling efficiency is over 85%.

2. It does not contain surfactants, naturally absorbs water, has a fast spreading speed, and has a long-lasting effect. A drop of water can be diffused in 4~5 seconds.

3. It has high water absorption, natural water absorption is 60~70mm/5min or 200mm/1.5hour.

4. The corrugated paper has been specially treated, with high structural strength, no deformation, and long-lasting durability.

5. The specific three-dimensional space structure provides the largest evaporation surface area for the heat exchange between water and air.

6. Silver Star wet curtain also has ventilation and corrosion resistance, has an excellent filtering effect on dust in the air, is a non-toxic, odorless, clean, humidified, and oxygen-cooled environmentally friendly material, so it is also used for air purification and filtration Medium.

7. Silver Star cooling pad is easy to install, non-toxic and harmless to the human body, green, safe, energy-saving, environmentally friendly and economical.

8. Three corrugated specifications 50/90, 60/90, 70/90 are optional. The size can be customized according to customer requirements.

9. Outer frame material: aluminum alloy, galvanized sheet, stainless steel, plastic steel

HENAN SILVER STAR POULTRY EQUIPMENT CO.,LTD, having a production history of more than 30years. Our company has the ability of producing more than 30 kinds of products. Our production line, from wire drawing, straightening, welding, forming to galvanization, has already been formed. As a result, production is running smoothly,At the moment,our company can produce whole supporting equipment.
Since our products entered the market, our products have won the praise of consumers and professionals from all walks of life and become the leading industry-recognized products in China.Through years of practice and exploration, our products are tight, flexible and durable, Our clients all over the world.

Main Products including:

H Type Layer Chicken Cage                              A Type Hens Cage

H Type Broiler Chicken Cage                             A Type Broiler Chicken Cage

H Type Baby Chick Cage                                   A  Type Brooder Cage

Automatic Feeding Machine                              Automatic Egg Collection Machine

Automatic Manure Removal Machine               Automatic Birds Harvesting

Environmental Controller                                   Automatic Water Drinking System

Welcome to visit our factory and our running equipments farms !

We have local service and offices at abroad, like Indonesia, Thailand, Philippines, Thailand, UAE, Saudi Arabia, Ecuador, Panama, Bangladesh, Chile, Peru, Argentina, Paraguay,  Venezuela, Paraguay, Uzbekistan, Tajikistan, Kazakhstan, Ghana, Algeria, Benin, Congo, Cameroon, Senegal, Somlia, Sudan, South Africa, Guinea, Kenya, Tanzania, Zambia, Uganda, Nigeria.

Company Awards
Silver Star has obtained 15 invention patents, 9 utility model patents, and some hornors from our government. And also has obtained ISO9001:2008 quality management system certification.

With the development of high technology and experiences in background, Silver Star products are welcome and popular by the clients from all over the world. There are many clients visiting Silver Star.

Every year there are kinds of exhibitions in mapping & survey fields, and Silver Star are there.

Our battery chicken cages products are widely used in poultry farm animal livestock field.The following are our automatic chicken equipments assembled around the world.

Looking forward to cooperating with you!
