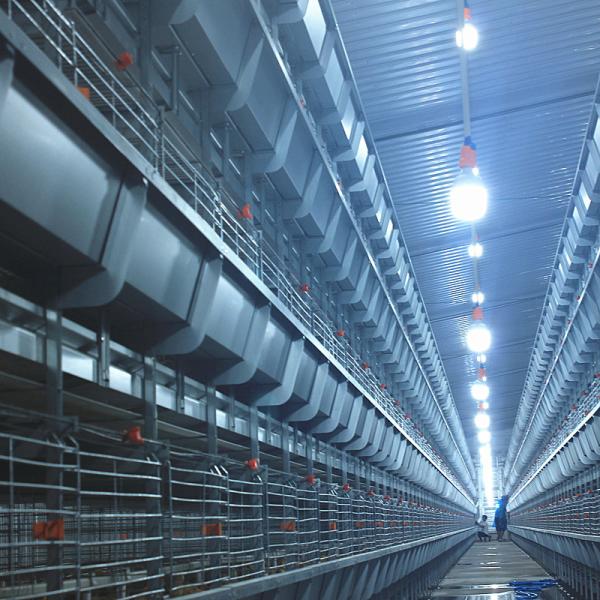

Four Layers Broiler Battery Chicken Poultry Cage With Auto Drinking
System
Broiler Battery Chicken Cage Introduction:
Broiler battery chicken cage adopts high-quality 275g/m2 zinc layer
hot-dip galvanized steel or Zn-Al steel, which is
corrosion-resistant and high product precision; Q235 material,
great flexibility, not easy to bend.
Following broiler chicken farm plans are for your reference:
1. Model: 1480x1750x440mm H Frame Battery Broiler Cage
(498cm2/bird)
4-Tier, 2 Lines, 61 Sets/Line, poultry house size: 100X7X4M on
25,376 birds;
4-Tier, 3 Lines, 61 Sets/Line, poultry house size: 100X11X4M on
38,064 birds;
4-Tier, 4 Lines, 61 Sets/Line, poultry house size: 100X15X4M on
50,752 birds.
2. Model: 1500x1000x440mm H Type Battery Broiler Cage (500cm2/bird)
4-Tier, 2 Lines, 61 Sets/Line, poultry house size: 100X5X4M on
14,640 birds;
4-Tier, 4 Lines, 61 Sets/Line, poultry house size: 100X10X4M on
29,280 birds;
4-Tier, 6 Lines, 61 Sets/Line, poultry house size: 100X15X4M on
43,920 birds.
3. Model: 1000x1000x440mm H Frame Chicken Battery Broiler Cage
(500cm2/bird)
4-Tier, 2 Lines, 92 Sets/Line, poultry house size: 100X5X4M on
14,720 birds;
4-Tier, 4 Lines, 92 Sets/Line, poultry house size: 100X10X4M on
44,160 birds;
4-Tier, 6 Lines, 92 Sets/Line, poultry house size: 100X15X4M on
66,240 birds.
4. Model: 890x1250x440mm H Type Manual Broiler Cage (505cm2/bird)
3-Tier, 2 Lines, 76 Sets/Line, poultry house size: 72X5X2.5M on
10,032 birds;
3-Tier, 4 Lines, 85 Sets/Line, poultry house size: 80X10X2.5M on
22,440 birds;
Broiler Battery Chicken Poultry Cage Parameter :
| H Type Broiler Battery Chicken Poultry Cage |
| Plan | Size/Set (mm) | Cage Size/Door (mm) | Area/Bird | Birds Capacity/Set |
| Three Layers | 1000x1000x2200 | 1000X1000X440 | 500cm2 | 60 |
| Three Layers | 1500x1000x2200 | 1500X1000X440 | 500cm2 | 90 |
| Three Layers | 1480x1750x2800 | 1480X1750X440 | 498cm2 | 156 |
| Four Layers | 1000X1000X2850 | 1000X1000X440 | 500cm2 | 80 |
| Four Layers | 1500X1000X2850 | 1500X1000X440 | 500cm2 | 120 |
| Four Layers | 1480X1750X3600 | 1480X1750X440 | 498cm2 | 208 |
Broiler Battery Chicken Poultry Equipment : Including Automatic
Feeding System, Automatic Manure Cleaning System, Automatic
Drinking System, Automatic Birds Harvesting System, Ventilation,
Environmental Controller, Lighting System, Light Steel Structure
Poultry House. |
How to increase the growth rate of broilers through cage system?
1. In the fully automatic equipment, put some birds in each broiler
cage, then install the feeding trough and water pipes in the
position of the broiler cage. Through the automatic feeding machine
and the water drinking system, take good care of poultry's diet, so
that all the birds in the breeding process can get enough food and
water, and meanwhile get a lot of growth nutrients.
2. Broiler cages are made of high-quality and smooth galvanized
materials, which can well control the occurrence of foot injuries
and infections of poultry during exercise. At the same time, when
feces are produced, they can easily enter the feces collection
device from the bottom of the cage, which can be more convenient to
deal with chicken manure to ensure a hygienic environment in the
breeding environment.
3. The application of broiler cages for breeding, on one hand, also
provides high-quality isolation of birds to prevent infection of
the entire breeding space when individual broiler become sick,
ensure the overall sanitation of the poultry, and greatly improve
production efficiency.
