Hot Galvanized Automatic Poultry Feeding System For H Type Battery Chicken Cage

Information Of Automatic Poultry Feeding System For H Type Battery Chicken Cage

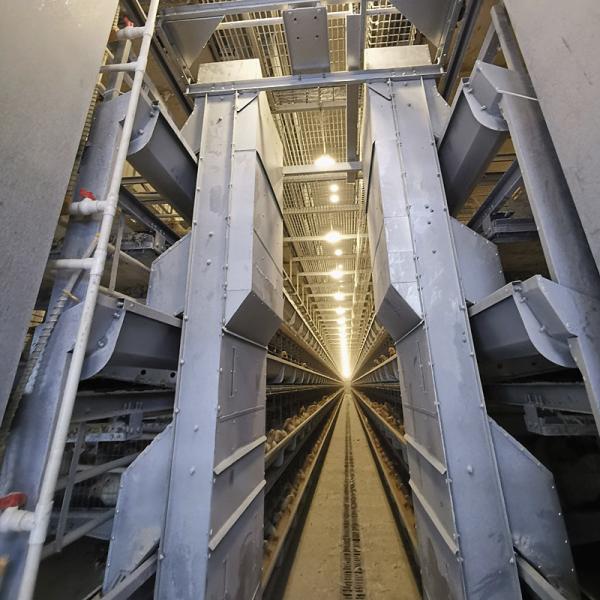

Poultry feeding system for H type battery chicken cage adopts hopper trolley feeding way with hot galvanized or zinc aluminum steel material. It is the feeding system with feed carts. Our feeding system with feed carts which is enable to make feed distributed hygienically, homogeneous, mixed and equally. In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with90-150 mm diameter. Feed carts are moved by steel cables and 0,75,1.50 HP(according to the chicken house length and hopper) electric gear motors over the rails that are located on the top of the battery chicken cages.

Automatic Poultry Feeding System Techinical Parameter

1. Feed Hopper: Each layer of cages with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device : Power of motor:0.75kw, tow rope: pp rope with 14mm, speed: 8.67m/minute.

3. Track of Trolley: Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame: Hot-dip galvanized steel with 40mm*60mm*3mm.

5. Each row feeding machine can be operated seperately.

6. The feeding trolley is conneted with the silo by the transverse feeding auger.

7. Suit for both A and H type layer battery chicken cage, broiler chicken cage, brooder cages etc.

H Type Battery Chicken Cage Advantages:

HENAN SILVER STAR POULTRY EQUIPMENT CO.,LTD, having a production history of more than 30years. Our company has the ability of producing more than 30 kinds of products. Our production line, from wire drawing, straightening, welding, forming to galvanization, has already been formed. As a result, production is running smoothly,At the moment,our company can produce whole supporting equipment.
Since our products entered the market, our products have won the praise of consumers and professionals from all walks of life and become the leading industry-recognized products in China.Through years of practice and exploration, our products are tight, flexible and durable, Our clients all over the world.

Main Products including:

H Type Layer Chicken Cage                              A Type Hens Cage

H Type Broiler Chicken Cage                             A Type Broiler Chicken Cage

H Type Baby Chick Cage                                   A  Type Brooder Cage

Automatic Feeding Machine                              Automatic Egg Collection Machine

Automatic Manure Removal Machine               Automatic Birds Harvesting

Environmental Controller                                   Automatic Water Drinking System

Welcome to visit our factory and our running equipments farms !

We have local service and offices at abroad, like Indonesia, Thailand, Philippines, Thailand, UAE, Saudi Arabia, Ecuador, Panama, Bangladesh, Chile, Peru, Argentina, Paraguay,  Venezuela, Paraguay, Uzbekistan, Tajikistan, Kazakhstan, Ghana, Algeria, Benin, Congo, Cameroon, Senegal, Somlia, Sudan, South Africa, Guinea, Kenya, Tanzania, Zambia, Uganda, Nigeria.

Company Awards
Silver Star has obtained 15 invention patents, 9 utility model patents, and some hornors from our government. And also has obtained ISO9001:2008 quality management system certification.

With the development of high technology and experiences in background, Silver Star products are welcome and popular by the clients from all over the world. There are many clients visiting Silver Star.

Every year there are kinds of exhibitions in mapping & survey fields, and Silver Star are there.

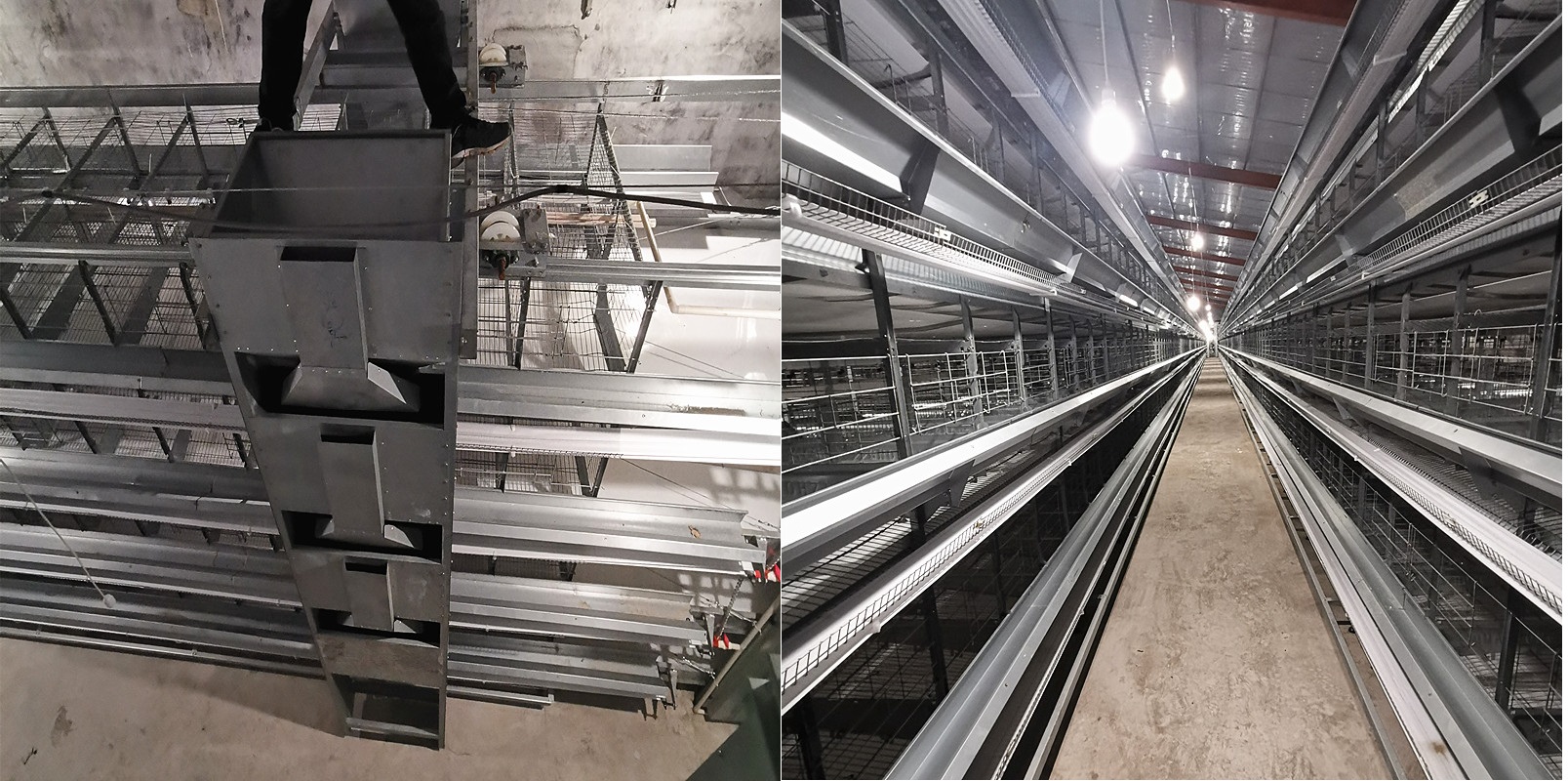

Our battery chicken cages products are widely used in poultry farm animal livestock field.The following are our automatic chicken equipments assembled around the world.

Looking forward to cooperating with you!
