    Q235 Steel Battery Cage Automatic Poultry Feeding System 65x125x222cm Size

    Ask Lasest Price
    Brand Name : Silver Star
    Model Number : YXH4L192
    Certification : SGS, ISO9001, SONCAP
    Price : 140-256USD/ Set
    Payment Terms : T/T, Western Union, L/C, D/A, D/P
    Supply Ability : 20000sets/week
    Delivery Time : in 30 working days after deposit
    • Product Details
    • Company Profile

    Q235 Steel Battery Cage Automatic Poultry Feeding System 65x125x222cm Size

    Poultry Farm Layer House Battery Chicken Cage With Automatic Feeding Equipment


    Poultry Farm Layer House Battery Chicken Cage Details


    Poultry farm layer house battery chicken cage system contains A and H shaped structure two ways. Both can be made fully automatic systems, with automatic feeding equipment, automatic drinking system, automatic faces cleaning system, automatic egg collecting system, ventilation and environmental controlling systems.

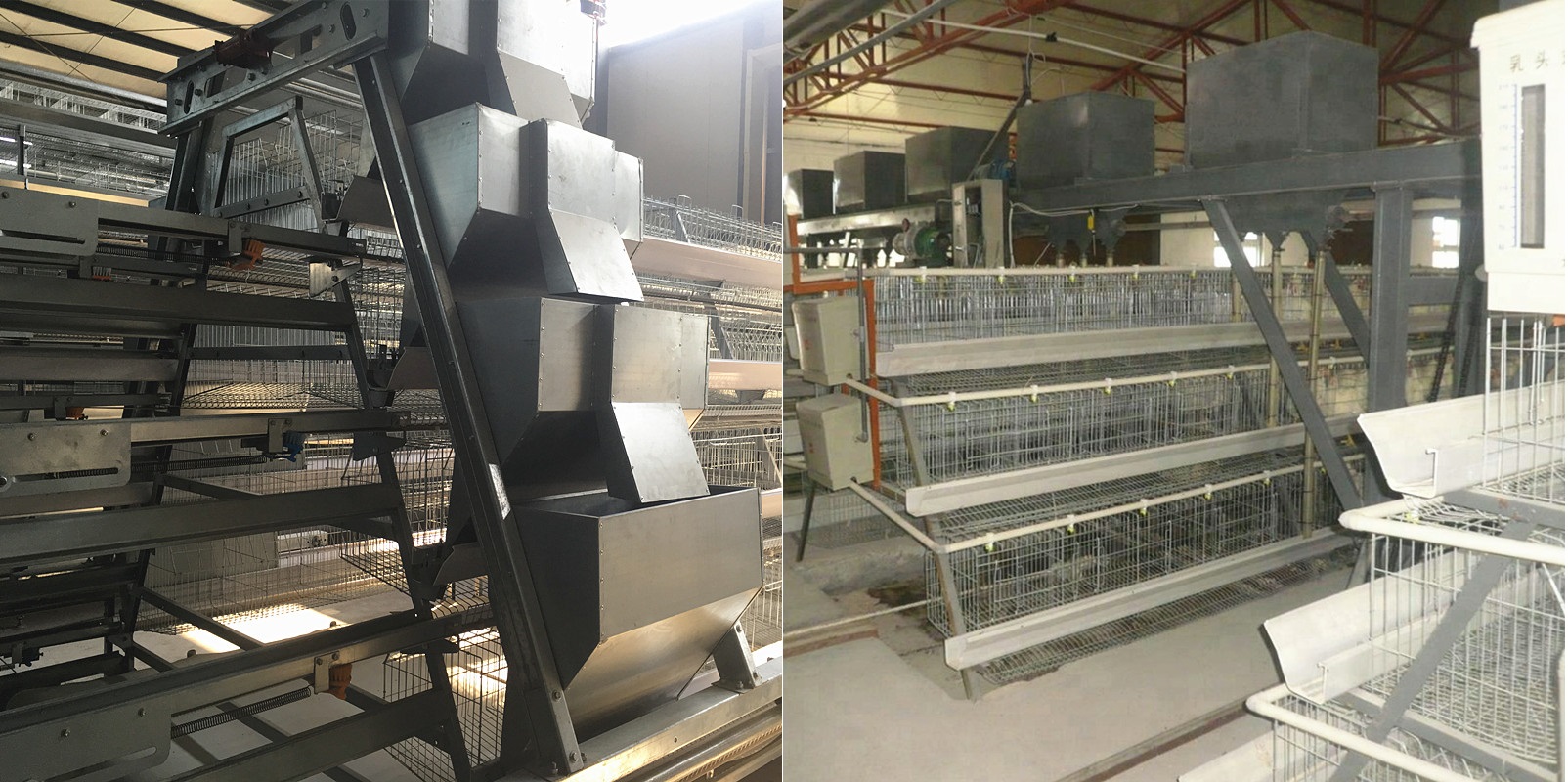

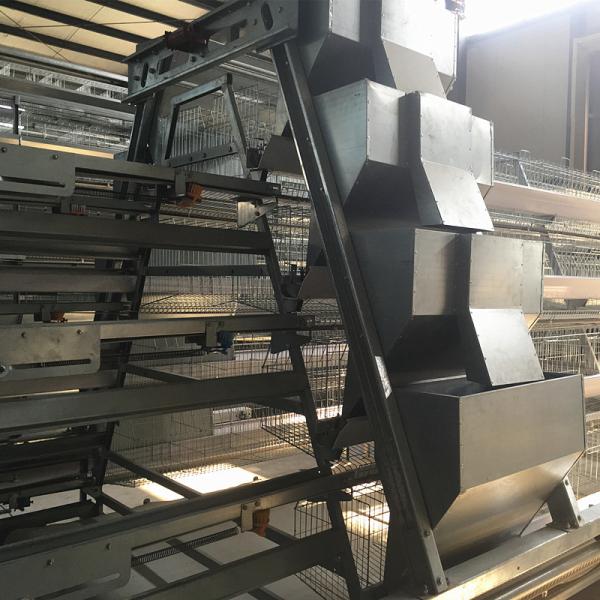

    Gantry feeding equipment and hopper trolley feeding carts machine can be produced for both A and H frame battery chicken cages.


    Automatic Poultry Feeding Euipment Working Principle


    Hopper trolley feeding carts method is to firstly transport the feed from the silo outside of poultry house to the front hopper of each line of chicken cage through the spring auger, and then evenly transport the feed to the feed trough of each layer cage through the moving carts. The feed capacity supply in the feed trough can be adjusted by the leveler.


    Gantry feeding machine in poultry farm is also a common feeding machine. Compared with ladder type feeding trolley, the gantry feeding machine is more suitable for A-type chicken cage and also much more cheaper than it. The gantry feeding machine in Silver Star machinery consists of frame, feeding box, feed sprocket, chain plate, electrical machine and so on. Thus, it can guaranteen feeding evenly and can also realize quantitative and proportional feeding.


    Layer House Battery Chicken Cage Size


    Poultry Layer Battery Chicken Cage
    A Frame Poultry Layer House Battery Chicken CageH Frame Poultry Layer House Battery Chicken Cage
    Tiers/FloorsSize/Door (cm)Cage Size/ Set(cm)Birds QtyTiers/FloorsSize/Door (cm)Cage Size/ Set(cm)Birds Qty
    3 Floors39x38x38195x230x150903 Floors65x62.5x5065x125x22254
    4 Floors39x38x38195x230x1901204 Floors65x62.5x5065x125x28772
    3 Floors48.7x41x41195x230x160965 Floors65x62.5x5065x125x35290
    4 Floors48.7x41x41195x230x2001286 Floors65x62.5x5065x125x417108
    3 Floors39x41x41195x230x1601208 Floors65x62.5x5065x125x547144
    4 Floors39x41x41195x230x2001603 Floors43x60x41183x120x214144
    3 Floors43x41x41215x230x1601204 Floors43x60x41183x120x279192
    4 Floors43x41x41215x230x2001605 Floors43x60x41183x120x344240
    3 Floors43x45x41215x236x1601206 Floors43x60x41183x120x409288
    4 Floors43x45x41215x236x2001608 Floors43x60x41183x120x539384

    Poultry Farm Layer House Battery Chicken Cage Features:


    1. Human cost reduction:full automatic of feeding,drinking,manure removal and envrionmental control,thus greatly reducing workers`s labor intensity and saving labor cost.
    2. Advanced equipment:cage nets use advanced hot-dip galvanized technology,that are resistant to corrosion,have long service life,are sturdy and are not easily rusted;cages are the preferred equipment for industrial and intensive farming.
    3. Investment saving:H frame cages have high rearing density and high intensification degree and save land at the same farming scale.
    4. Medicine cost reduction:H frame cages use totally enclosed reating mode,thereby realizing separation of people from chickens,greatly improving the environment of chicken house and reducing the invasion of exotic diseases and mortality
    The distance between adjacent leg is 1200mm,such cages have larger bearing capacity and the space of cage is larger.C-shape legs formed of hot dip galvanized are easy to clean.
