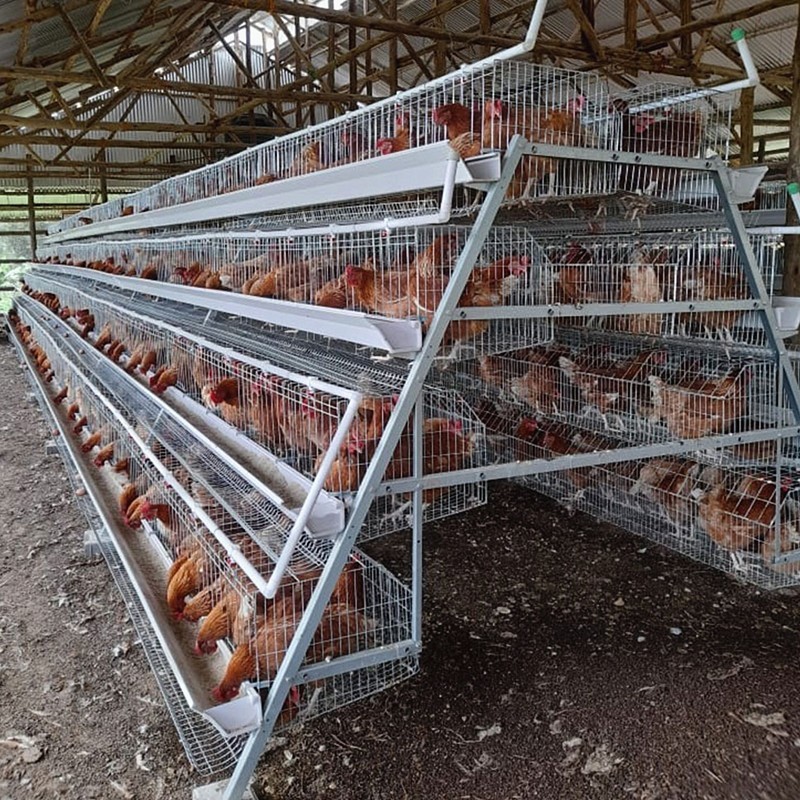

160 Birds Capacity A Type Egg Layer Chicken Cage Equipments For
Poultry Farms
Product Description
1. A type layer chicken cage with automatic drinking system.
2. 3,4,5Tiers chicken cage for layers poultry farming, battery cages
for poultry chicken layer,
3. 2.5mm to 3.2mm hot dipped Q235A galvanized steel wire.
4. 360 degree stainless steel or plastic ball nipple value drinking
system, water flow 30-40ml.
5. White PVC round pipe water pipe 25mm*2mm.
6. White PVC material Feed Trough.
6. Water pressure regulator, working pressure 0.1-0.4Mpa. Water
flow at working mode is 20kg/min.
A Type Layer Chicken Cage Including
1.Cage with drinking system (Basic Configuration, manual)
2. Automatic feeding system (Not Mandatory Option)
3.Automatic drinking system( Not Mandatory Option)
4. Automatic manure cleaning system ( We have two types, belt type
and scrapper type,Not Mandatory Option)
5.Automatic ventilation cooling system (Close house need it, open
house don't need it.)
A Type Layer Chicken Cage Features
1. Compared with the H type stacked cage system, the investment of
A frame cage system can be reduced.
2. The laying hens can obtain more breeding area and increase the
laying rate of the laying hens.
3. It is convenient for maintenance and repair, and the cage system
can be controlled according to the prompt steps.
4. Automatic egg conveying system can improve the cleaning rate of
eggs.
5. Convenient disinfection, easy to control coccidiosis and other
parasitic diseases and worm infections;
6. Automatic drinking water system can ensure equal water pressure
in the nipple and ensure the drinking of the laying hens.
7. The design of lengthening the edge of the trough reduces the
waste of feed and improves the effective conversion rate of feed.
8. The ventilation effect is good to ensure that the laying hens in
the cage system will not suffocate due to high temperature.
9. The use of the manure removal belt imported from Italy can
ensure the cleanliness of the cage system, reduce the breeding of
bacteria, reduce the disease rate and mortality of laying hens.
A Type Layer Chicken Cage Size
| A Type Layer Chicken Cage |
| Cage size/cm | Door No. /cage | Chicken No. /door | No. of tier | Birds Qty/set | Area per bird (cm2/bird) | Each door size(cm) | Unit cage size(cm) |
| 195*38*38 | 5 | 3 | 3 | 90 | 494 | 39x38x38 | 195x230x150 |
| 195*38*38 | 5 | 3 | 4 | 120 | 494 | 39x38x38 | 195x230x190 |
| 195*41*41 | 5 | 4 | 3 | 90 | 533 | 39x41x41 | 195x230x160 |
| 195*41*41 | 5 | 4 | 4 | 120 | 533 | 39x41x41 | 195x230x200 |
| 195*41*41 | 4 | 4 | 3 | 96 | 499 | 48.7x41x41 | 195x230x160 |
| 195*41*41 | 4 | 4 | 4 | 128 | 499 | 48.7x41x41 | 195x230x200 |
| 195*45*41 | 5 | 4 | 3 | 120 | 438 | 39x45x41 | 195x236x160 |
| 195*45*41 | 5 | 4 | 4 | 160 | 438 | 39x45x41 | 195x236x200 |
| 172x41x41 | 4 | 4 | 3 | 96 | 440 | 43x41x41 | 172x230x160 |
| 172x41x41 | 4 | 4 | 4 | 128 | 440 | 43x41x41 | 172x230x200 |
| 215x41x41 | 5 | 4 | 3 | 120 | 440 | 43x41x41 | 215x230x160 |
| 215x41x41 | 5 | 4 | 4 | 160 | 440 | 43x41x41 | 215x230x200 |
A Type Layer Chicken Cage Advantage
1. A framen layer cage, easy to operate, sturdy and durable;
2. The surface of the cage can be electroplated or hot-dip
galvanized;
3. Good ventilation and lighting, which is conducive to chicken
growth, high egg production rate and low egg broken rate;
4. Small investment, large breeding volume, and good economic
benefits.
