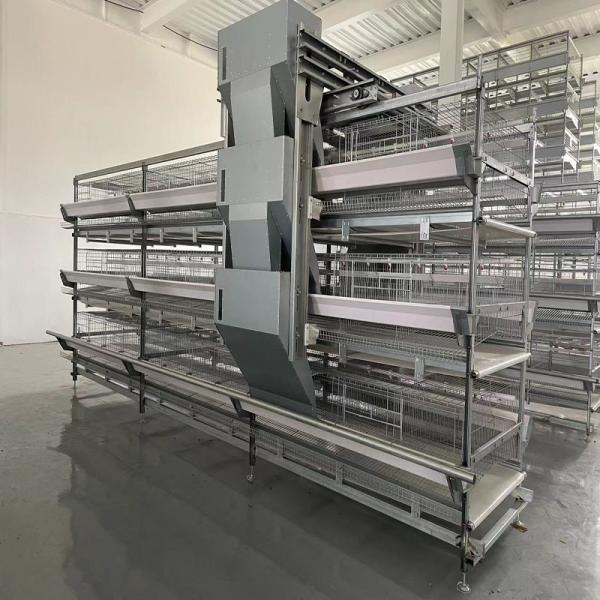

Fully Automatic Poultry Cage System Egg Layer Chicken Battery Cage
For 30000 Layers

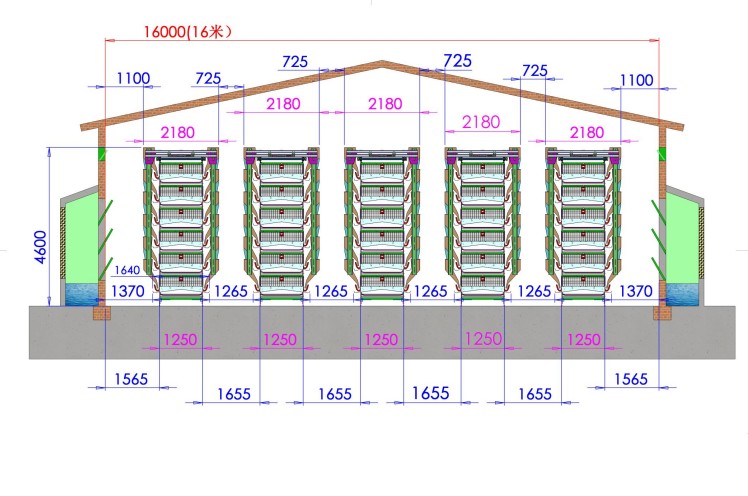

Chicken farm design scheme
The address is selected in natural conditions
1) Topography: To build a field in a plain area, you should choose
a flat land with dry terrain, flat or a slight slope, and the slope
direction should be southeast. This kind of site has plenty of
sunlight, long hours of sunlight and good queuing, which helps to
maintain the environmental hygiene in the chicken house.
2) Terrain: The terrain should be square and not too long.
3) water source: chicken farm water is more, the average daily
water intake of each adult chicken is about 300 ml, in the hot
summer, the water intake increases, and the water and other water
in the chicken coop is 2-3 times the chicken water intake, the
installation of water filter, can filter out the impurities in the
water, gravel, water quality is clear. Water storage devices are
generally required to consider water supply during power outages or
water shortages during the dry season.
Specification
(1)Tiers:3/4/5/6/8 tier/floors
(2)Material:Q235 national bridge steel, double cold galvanized or
hot dip galvanizing, zinc thickness: 275g/㎡
(3)Cage frame :Material of leg of frame is U type hot-dip
galvanized steel with thickness: 3mm
(4)Feed trough:Material: Pure white pvc or hot dipped galvanized or
Zinc-Aluminum steel
(5)Design: Can be manual cage, semi-automatic or automatic as your
request .
(6)Fully Automatic System Including Layer Hens Battery Cage Body,
Layer Battery Cage Frame, Feeders, automatic drinking
system,on-rail hopper feeding system, manure removal stystem, egg
collection system, Ventilation System etc
Automatic On-Rail Hopper Feeding Machine Equipments
1.Hopper:Each tier with two hoppers, thickness is 1.2mm, material
is hot-dip galvanized steel
2.Traction Device :Power of motor:0.75kw,tow rope: pp rope with
14mm,speed:8.67m/minute.
3.Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.
4.Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.
Silo&Feed Uploading Machine Equipments
1.Capacity:4tons,8tons,10tons,13tons,15tons,20tons,33tons
2.Thickness:3mm thickness hot galvanized steel
3.Feed density 0.65ton/m Material of silo is galvanized steel
(275g) ,which is anti-erosive and ensures the long service life
Egg Collection Machine Equipments
1.Hot-dip galvanized 1.5mm side plate,speed 2.95m/min.
2.Egg guider:Hot-dip galvanized with thickness 1mm,configuration
with stretching device.
Automatic Manure/Waste Cleaning Machine Equipments
1.Belt type manure cleaning machine:Hot-dip galvanized 3mm side
plate,chain safety door with 1mm hot-dip galvanized steel, running
speed 3m/min.1.5KW
2.Manure cleaning belt:Material is PP, which has high tensile
strength to ensure a long service life.Thickness is 1.2mm.Width is
1.2m.
3.Bracket for manure cleaning belt:Material is hot-dip galvanized
steel, thickness is1.5mm.
Advantages of Laying Hens Cage
1. Caged laying hens mode is 3-5 times more than the number of flat
laying hens, making full use of the site area, improving the
feeding density and work efficiency,
2. Caged laying hens use multi-layer chicken cage technology, which
can make full use of space and facilitate management.
3. Save feed and reduce feed waste. The consumption of each is
about 25g less than that of free-range laying hens, which can save
about 20% of feed.
To facilitate the prevention and control of diseases, caged laying
hens live in the cage, and the manure falls to the ground through
the gap, which avoids direct contact between the laying hens and
the feces, thereby reducing the occurrence of diseases.
